Description

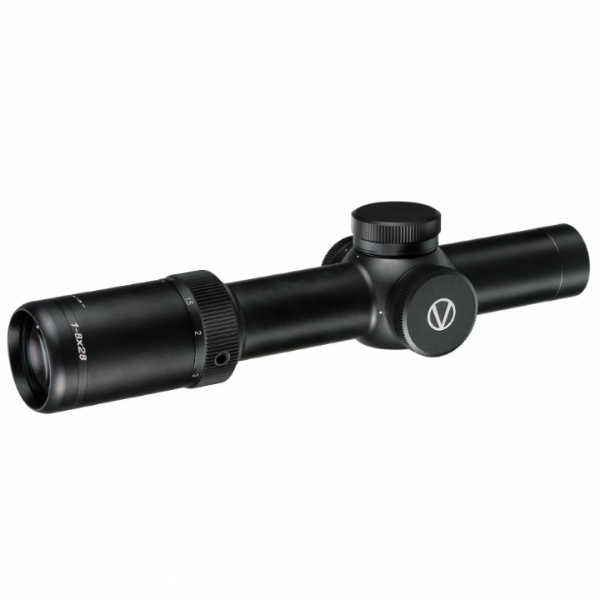

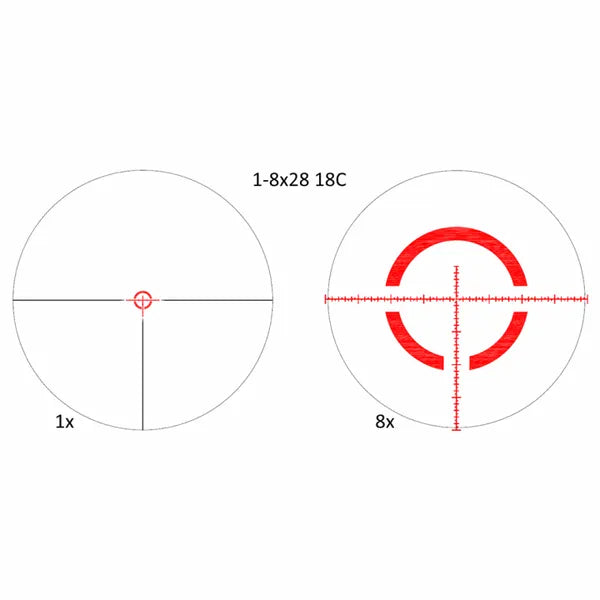

Experience precision like never before with the BDC8 featuring an illuminated reticle, designed for ultimate accuracy. Set in the 1st picture plane FFP, its one-piece tubular body boasts a sleek black housing surface, ensuring durability in the field. The perfect full multi-coating guarantees optimal clarity, while the diopter adjustment range of +/- 2 dpt. allows for personalized viewing. With a pupillary distance of 89 mm and an exit pupil ranging from 8.0 to 3.5 mm, this optic delivers a superior visual experience.
Crafted with a 34 mm center tube diameter, the lens diameter inside and outside measures 28 mm and 39 mm respectively. The eyepiece diameter is a substantial 39 mm, providing comfort during extended use. Fine-tune your aim with the 1/4 MOA (7.27mm @ 100m) reticle adjustment per click, and enjoy a generous max adjustment range of 140 MOA (407cm @ 100m). Parallax-free up to 100 m (109yds), this optic guarantees a clear view, and the parallax compensation is expertly calibrated.
Delve into the field with a broad 35.5-4.4 m field of view at 100 m, and confidently maneuver with an overall length of 27.7 cm. Weighing in at 700 g, this reticle is your go-to choice for precision and performance in every outdoor adventure.
Specifications
|
Reticle |
BDC8 with illuminated reticle |
|
Reticle level |
1st picture plane FFP |
|
Housing surface |
black |
|
Tubular body |
one-piece |
|
compensation |
Perfect full multi-coating |
|
Diopter adjustment range |
+/- 2 dpt. |
|
Pupillary distance |
89 mm |
|
Exit pupil |
8.0-3.5 mm |
|
Center tube diameter |
34 mm |
|
Lens diameter inside / outside |
28 mm / 39 mm |
|
Eyepiece diameter |
39 mm |
|
Reticle adjustment (per click) |
1/4 MOA ( 7.27mm @ 100m) |
|
Max. Adjustment range |
140 MOA ( 407cm @ 100m ) |
|
Parallax free |
100 m (109yds) |
|
Parallax compensation |
No |
|
Field of view at 100 m |
35.5-4.4 m |
|
overall length |
27.7 cm |
|
Weight |
700 g |
THIS PRODUCT CONTAINS OR USES A BUTTON CELL BATTERY
If swallowed, a lithium button battery can cause severe or fatal injuries within 2 hours. Keep batteries out of reach of children. If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention.
*All Vixen riflescopes are covered by a Limited lifetime warranty against manufacturing defects for the original purchaser. The warranty does not cover accidental breakage or abuse and is not transferable. This warranty does not cover products purchased outside of Australia.*
